Quick Details

  • Light Source: LED
  • Item Type: Downlights
  • LED Light Source: SMD LED
  • Warranty(Years): 3
  • Input Voltage(V): AC85-265V
  • Lamp Power(W): 5
  • Lamp Luminous Flux(lm): 390-420lm
  • Lamp Luminous Efficiency(lm/w): 83
  • CRI (Ra>): 82
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -30 - +50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP44
  • Certification: CE, RoHS, SAA
  • Model Number: GS-DL112-5Wc-OS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: GS
  • Product name: 5w square led downlight
  • LED Chip Brand: OSRAM
  • LED Type: SMD5630
  • LED Qty(pcs): 12 pcs
  • Size: Diameter112mm*H50mm
  • Cut-out(hole size): 95mm
  • Work Environment: Indoor
  • Lamp Body Shell Color: Black
  • Face Mask Color: White
  • Dimmable: Optional

Packaging & Delivery

Packaging Details Export standard packing
Delivery Time 3-5 days for samples order, 7-10 days for bulk order

Popular on the market GU10 5W light cup square led downlight



Specification:

Product Name 5w square led downlight
Item No.GS-DL112-5Wc-OS
LED Chip BrandOSRAM
LED Light Source High Brightness SMD LED
LED TypeSMD5630
LED Qty (pcs)12 pcs
Power Consumption (W)5W
Input VoltageAC85-265V 50/60Hz
Luminous Flux (lm)390-420lm
Color Rendering Index (CRI)80-85
ColorWarm White/ Nature White / Cool White
CCT(K)2700~3500K(WW)
4000~4500K(NW)
6000~6500K(CW)
Lifespan>50, 000hours
Warranty (years)3 years
Working EnvironmentIndoor Usage
DimensionΦ112mm*H50mm
Cut-out(Hole size)
Φ95mm
Fixture Material

6063 Aluminum



Color Temperature:

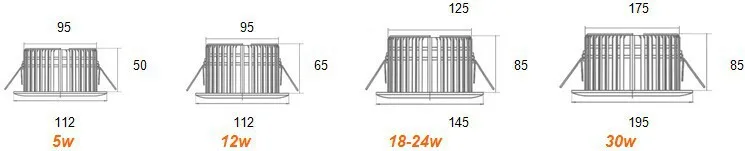

Different Model and Size for optional:

Model No.Size

hole size

PowerLED QuantityLuminous FluxColor Temperature
GS-DL108-5Wc-OSΦ112mm*H50mm95mm5W12pcs SMD5630390-420LM3000K,4000K,6000K
GS-DL108-12Wc-OSΦ112mm*H60mm95mm12W26pcs SMD5630950-1000LM3000K, 4000K, 6000K
GS-DL145-18Wc-OSΦ145mm*H85mm125mm18W36pcs SMD56301400-1600LM3000K, 4000K, 6000K
GS-DL145-24Wc-OSΦ145mm*H85mm125mm24W48pcs SMD56301900-2100LM3000K, 4000K, 6000K
GS-DL195-30Wc-OSΦ195mm*H85mm175mm30W60pcs SMD56302200-2500LM3000K, 4000K, 6000K



Product Description



Feature:

1. Compared to tradtional LED heatsink, our dissipating area is bigger, air convection is better.
2. With hook up connecting structure,easy to assembly the components together, very efficient for mass production or DIY users.
3. The cooling structure is under patent protection included the appearance.
4. Ultra energy efficient, up to 90% energy-saving.
5. No mercury, lead, less CO2 emission, eco-friendly to the environment.
6. No UV, infrared output, no harmful to human body.
7. High shock and vibration resistant with durable aluminum housing.
8. Solid-state, fast turn on.
9. Less heat output, no heat damage.
10. Easily installed into standard fitting.



Product details show:



5w square led downlight:

(Comes complete with SAA approved Constant Current LED Driver with 1.2m flex & 2pin Au plug)

1. Fixture Material: Using 6063 Aluminum profile, with ultra-thin shape, beautuful body,

exquisite workmanship, good heat dissipation effect, over 50,000 hours lifespan.


2. LED Light source: Using international brand LED (OSRAM), Original Germany OSRAM SMD5630 Chips,

Uniform distribution of light, stable brightness, High Color Rendering index over 85, high Luminous efficacy,

no flicker and glare. (Also other LED Chip Brand on your request).



3. High Quality External Austrilian Standard SAA Approval Constant Current LED Driver:

Austrilian Standard SAA approved Constant Current LED Driver with 1.2m flex & 2pin Au plug ,

Input Voltage: 200-240V~50/60Hz, PF≥0.9.



Connection:

Using Quick connect plug to connect the led downlight and led driver, very easy and convenient.





Aging Testing:



Installation:

1. Drill a right hole where need to install the downlight.
2. Connect the power cable to the electrical source.
3. Push the mechanical spring to the back of the downlight fitting.
4. Put the light fixture to the ready hole.



Applications:

1. Recess lighting, shelf lighting, ceiling/wall coves
2. Cabinet and under counter lighting, office work station
3. Residential lighting, such as living room, bed room, washroom, kitchen etc.
4. Commercial lighting, such as hotels, shops, stores etc.
5. Schools, colleges, universities, hospitals
6. Exhibition halls, art galleries, museums








Packaging & Shipping



Packing details:

We offer OEM & ODM services. Can print your own logo on products, also can customize the retail box packing according to your demands.



Shipping details:

We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive, or by sea which takes about one month to arrive, depending on your actual requirements.
1. By express: Like DHL,UPS, TNT, FEDEX etc. The dispatch time is about 3-5 will search for a economical shipping company to transport the goods safely.
2. Air Freight: When you order more than 100kg which will be more economical than express.
3. Sea freight: We will update sea freight later once we know to which sea port goods will be delivered.
4. Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.


Our Services



Warranty Term:
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period,

we will provide free/rework new products.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction,

we will provide paid maintance within warranty period.

Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance

after goods ready before shipping. or L/C, or Western Union for small amount.
2. Lead time: normally in 5~10 days after deposit received
3. Sample policy: Samples are always availble for each model . Samples can be ready in 3~7 days once payment received.
4. Shipping port: Shenzhen, China
5. Discounts: We offer discount for big quantity.


Company Information



Our Main products:




FAQ



Why buy from us?



Excellent performance: high light efficiency, energy saving up to 60%, more than 35000 hours lifespan.


Good lighting effect: special design makes balanced lighting effect, non-dark area, non-light spot.


High quality: pure aluminum high thermal conductivity management system, international brand LED (OSRAM), Original Germany OSRAM SMD Chips.


Competitive price: factory price offered under low profit, long term relationship sales policy.


Quality assurance: all products delivered before 12 hours aging test. Long warranty: 3 years.


Fast delivery: short lead time based on high production capacity.


Good service: prompt, professional service offered by passionate sales, OEM and ODM services are provided, such as engrave customers logo on products, using customer appointed package, produce products according to customers design and more.



We are looking forward to building up long-term business relationship with you in future.

If you are interested in our LED lights, please feel free to contact us for more information.
Welcome your trial orders!

....
